| Model | PPVP 260 |
|---|---|
| Working Chamber Size (mm) | 380 x 285 x 65 |
| Sealing Size (mm) | 260 |
| Voltage ( Hz ) | 220V / 50Hz 110V / 60Hz |
| Vacuum Pump Capacity | 8m3 / per hour |
| Sealing Power (W) | 150 |
| Total Power Consumption (W) | 500 |
| Machine Dimension (L xWx H) (mm) | 500 x 340 x 300 |
| Weight of Machine (kg) | 31 |
| Model | PPVP 400 |
|---|---|
| Chamber | Single ( Fibre Top ) |
| Voltage ( V / Hz ) | 220 / 50 |
| Sealing Power ( W ) | 500 |
| Sealing Width ( mm ) | 10 |
| Sealing Position of Vacuum Chamber (W) | 2 |
| Volume Chamber Bulk ( L x W x H )mm | 440 x 420 x 100 |
| Sealing Length ( mm ) | 400 |
| Air Charging Volume for Vacuum Pump ( m3 / h ) | 20 |
| Material for Vacuum Case | Fibre |
| Dimension ( L x W x H )mm | 540 x 480 x 1010 |
| Weight ( kg ) | 110 |
with Gas Flushing Timing Regulation option available
| Model | PPVP 400 R |
|---|---|
| Chamber | Single (Fiber Top) |
| Voltage ( V / Hz ) | 220 / 50 |
| Sealing Power ( W ) | 500 |
| Sealing Width ( mm ) | 10 |
| Sealing Position of Vacuum Chamber | 2 |
| Sealing Length (mm) | 400 |
| Air Charging Volume for Vacuum Pump ( m3 / h ) | 20 |
| Upgraded reliability(Ui 750V, Uimp- 8kV) | Fiber |
| Dimension (L x W x H) mm | 540 x 480 x 1010 |
| Weight (Kg) | 110 |
| Model | PPVP 500 |
|---|---|
| Chamber | Single ( Fibre Top ) |
| Voltage ( V / Hz ) | 220 / 50 |
| Sealing Power ( W ) | 700 |
| Sealing Width ( mm ) | 10 |
| Sealing Position of Vacuum Chamber (W) | 2 |
| Volume Chamber Bulk ( L x W x H )mm | 530 x 525 x 100 |
| Sealing Length ( mm ) | 500 |
| Air Charging Volume for Vacuum Pump ( m3 / h ) | 20 |
| Material for Vacuum Case | Fibre |
| Dimension ( L x W x H )mm | 580 x 650 x 1010 |
| Weight ( kg ) | 125 |
with Gas Flushing Timing Regulation option available
| Model | PPVP 500 R |
|---|---|
| Chamber | Single ( Fibre Top ) |
| Voltage ( V / Hz ) | 220 / 50 |
| Sealing Power ( W ) | 750 |
| Sealing Width ( mm ) | 10 |
| Lowest Pressure of Vacuum Chamber ( KPa ) | 1 |
| Sealing Position of Vacuum Chamber | 2 |
| Sealing Length ( mm ) | 500 |
| Air Charging Volume for Vacuum Pump ( m3 / h ) | 20 |
| Material for Vacuum Case | Fiber |
| Dimension ( L x W x H )mm | 580 x 650 x 1010 |
| Weight ( kg ) | 125 |
| Model | PPVP 600 A |
|---|---|
| Chamber | Single ( Fibre Top ) |
| Voltage ( V / Hz ) | 380 / 50 |
| Sealing Power ( W ) | 1000 |
| Sealing Width ( mm ) | 10 |
| Lowest Pressure of Vacuum Chamber ( KPa ) | 1 |
| Sealing Position of Vacuum Chamber | 2 |
| Sealing Length ( mm ) | 600 |
| Air Charging Volume for Vacuum Pump ( m3 / h ) | 40 |
| Material for Vacuum Case | Fiber |
| Dimension ( L x W x H )mm | 760 x 770 x 970 |
| Weight ( kg ) | 150 |
| Model | PPVP 600 R |
|---|---|
| Chamber | Single ( Fibre Top ) |
| Voltage ( V / Hz ) | 380 / 50 |
| Sealing Power ( W ) | 1000 |
| Sealing Width ( mm ) | 10 |
| Lowest Pressure of Vacuum Chamber ( KPa ) | 1 |
| Sealing Position of Vacuum Chamber | 2 |
| Sealing Length ( mm ) | 600 |
| Air Charging Volume for Vacuum Pump ( m3 / h ) | 40 |
| Material for Vacuum Case | Fiber |
| Dimension ( L x W x H )mm | 760 x 770 x 970 |
| Weight ( kg ) | 150 |
| Model | PPVP 500 D R |
|---|---|
| Chamber | Single ( Fibre Top ) |
| Voltage ( V / Hz ) | 220 / 50 |
| Vacuum Pump Power (W) | 1500 |
| Sealing Power (W) | 750 |
| Sealing Width ( mm ) | 10 |
| Lowest Pressure of Vacuum Chamber ( KPa ) | 1 |
| Sealing Position of Vacuum Chamber | 2 |
| Volume Chamber Bulk ( L x W x H ) (mm) | 530 x 525 x 300 |
| Sealing Length ( mm ) | 500 |
| Air Charging Volume for Vacuum Pump ( m3 / h ) | 30 |
| Material for Vacuum Case | Stainless Steel |
| Dimension ( L x W x H )mm | 580 x 650 x 1010 |
| Weight ( kg ) | 125 |
| Model | PPVP 600 D R |
|---|---|
| Chamber | Single ( Fibre Top ) |
| Voltage ( V / Hz ) | 380 / 50 |
| Vacuum Pump Power (W) | 1100*2 |
| Sealing Power (W) | 900 |
| Sealing Width ( mm ) | 10 |
| Lowest Pressure of Vacuum Chamber ( KPa ) | 1 |
| Sealing Position of Vacuum Chamber | 2 |
| Volume Chamber Bulk ( L x W x H ) (mm) | 700 x 620 x 300 |
| Sealing Length ( mm ) | 600 |
| Air Charging Volume for Vacuum Pump ( m3 / h ) | 20 |
| Material for Vacuum Case | Stainless Steel |
| Dimension ( L x W x H )mm | 760 x 770 x 970 |
| Weight ( kg ) | 150 |

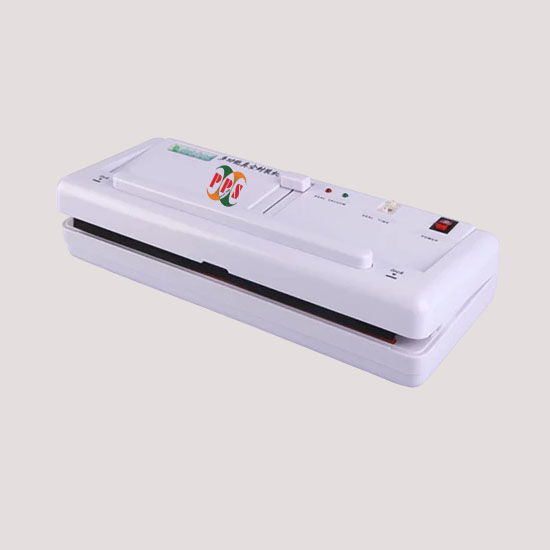

| Model | PPVP 200 |
|---|---|
| Voltage ( V / Hz ) | 220 / 50 110/60 Hz |
| Sealing Power (W) | 150 |
| Ultimate Vacuum Pressure (KPa) | 0.6 |
| No. of Sealing Bar | 1 |
| Sealing Length & Sealing Width (mm) | 280 x 8 |
| External Dimensions (LxWxH) (mm) | 350 x 140 x 70 |
| Net Weight (kg) | Approx 2.1 |
| Model | PPVP 350 |
|---|---|
| Voltage | 380v / 50hz |
| Power | 2.4kw |
| Capacity | 100 - 300 |
| Air Pressure | 0.6-0.8 mpa |
| Sealing Size (mm) | 300*380 |
| Material | 304 ss |
| Working Temperature | 0-400 degrees |
| Machine Size (L*W*H) (mm) | 750*510*550 |
| Machine Weight (kg) | 80 |
| Model | PPVP 260 S |
|---|---|
| Voltage (V/Hz) | 220 / 50 |
| Sealing Length (mm) | 210 |
| Sealing Width (mm) | 5 |
| Maximum Product Height (mm) | 70 |
| Ultimate Vacuum Pressure (torr) | <10 |
| Vacuum Pump Capacity (m3/h) | 4 |
| Chamber Size (L x W x H) (mm) | 305 x 240 x 70 |
| imensions of Machine (L x W x H) (mm) | 434 x 300 x 240 |
| Model | PP SV-650 |
|---|---|
| Voltage (V/Hz) | AC 380/50 |
| Motor power (W) | 1100 |
| Sealing Power (W) | 500 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| No. of Sealing Bar for Each Chamber | 1 |
| Sealing Length (mm) | 650 |
| Sealing Width (mm) | 10 |
| Chamber Dimension (L × W × H) (mm) | 740 × 567 × 309 |
| Vacuum Pump Rate (m3/h) | 40 |
| Material of Vacuum Chamber | Stainless Steel 304 |
| External Dimensions (L × W × H) (mm) | 1015 × 700 × 950 |
| Net Weight (kg) | 250 |
